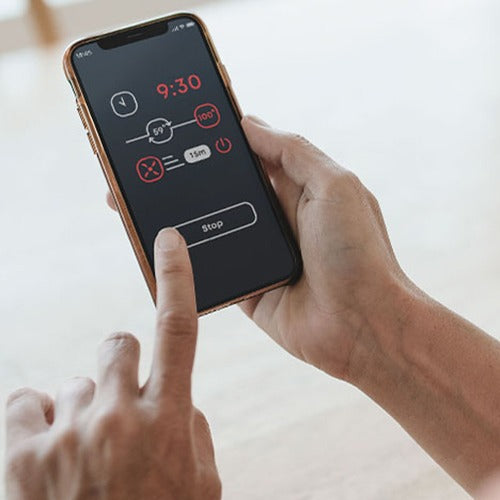

Built-In Wi-Fi: Connects with the compatible Saunum mobile app for remote operation, scheduling, and system status information.

104°F–194°F Temperature Range: Provides adjustable sauna temperature settings from 104°F to 194°F (40°C to 90°C).

Three Programmable Sauna Settings: Allows configuration of temperature, operating time, and climate-device speed.

Weekly Scheduling: Supports scheduled sauna operation with three programmable sessions.

Three-Speed Climate Control: Provides three-speed adjustment for compatible Saunum climate-equalizing systems.

Soft-Touch Interface: Compact digital display features tactile operation with haptic feedback.

Mobile Notifications: Supports notifications for sauna readiness, heater status, open-door conditions, and overheating protection.

Modbus Integration: Provides integration capability for compatible smart-home systems.

Multi-Language Interface: Supports multiple interface languages for flexible installation environments.

Application-Specific Timer: Supports operation up to 1 hour in private saunas and up to 6 hours in public-sauna applications, subject to applicable configuration and installation requirements.

Safety Controls: Includes screen lock, child safety lock, door monitoring, and overheating protection functionality.

Fahrenheit or Celsius: User-selectable temperature display.

Separate Power Unit: Includes a dedicated 240 VAC single-phase power unit rated IP64.

UL Listed: Manufacturer specifications identify both the AirIQ control and its power unit as UL listed.

Model: AirIQ Wi-Fi

Product Type: Programmable Wi-Fi Sauna Heater Control

Display Type: Digital Soft-Touch

Display Response: Tactile with Haptic Feedback

Display Color: Nordic Black

Wi-Fi: Built-In

Mobile App Operation: Supported

Smart Home Integration: Modbus

Temperature Range: 104°F–194°F (40°C–90°C)

Private Sauna Operating Time: Up to 1 Hour

Public Sauna Operating Time: Up to 6 Hours

Programmability: Weekly Scheduling with Three Programmable Sessions

Preset Sauna Settings: Up to 3

Climate Equalizer Control: 3-Speed Adjustability

Temperature Display: Fahrenheit or Celsius

Display IP Rating: IP20

Power Unit Voltage: 240 VAC

Power Unit Phase: Single-Phase

Power Unit IP Rating: IP64

Display Operating Temperature: -4°F to 145°F (-20°C to 62°C)

Power Unit Operating Temperature: -4°F to 113°F (-20°C to 45°C)

Installation Location: Outside Sauna Room

Safety Listing: UL

Sauna Heater: Required, Sold Separately

Included

• AirIQ Wi-Fi Soft-Touch Display Panel
• Wall Mounting Plate
• Mounting Fasteners
• Power Unit
• Installation and Operation Manual
• Limited Warranty

Important: The supplied product data identifies the display-panel cable, door sensor/cable assembly, and room-temperature sensor as included with the heater, not with the standalone AirIQ Wi-Fi control. Confirm that the compatible Saunum heater installation includes these components before installation.

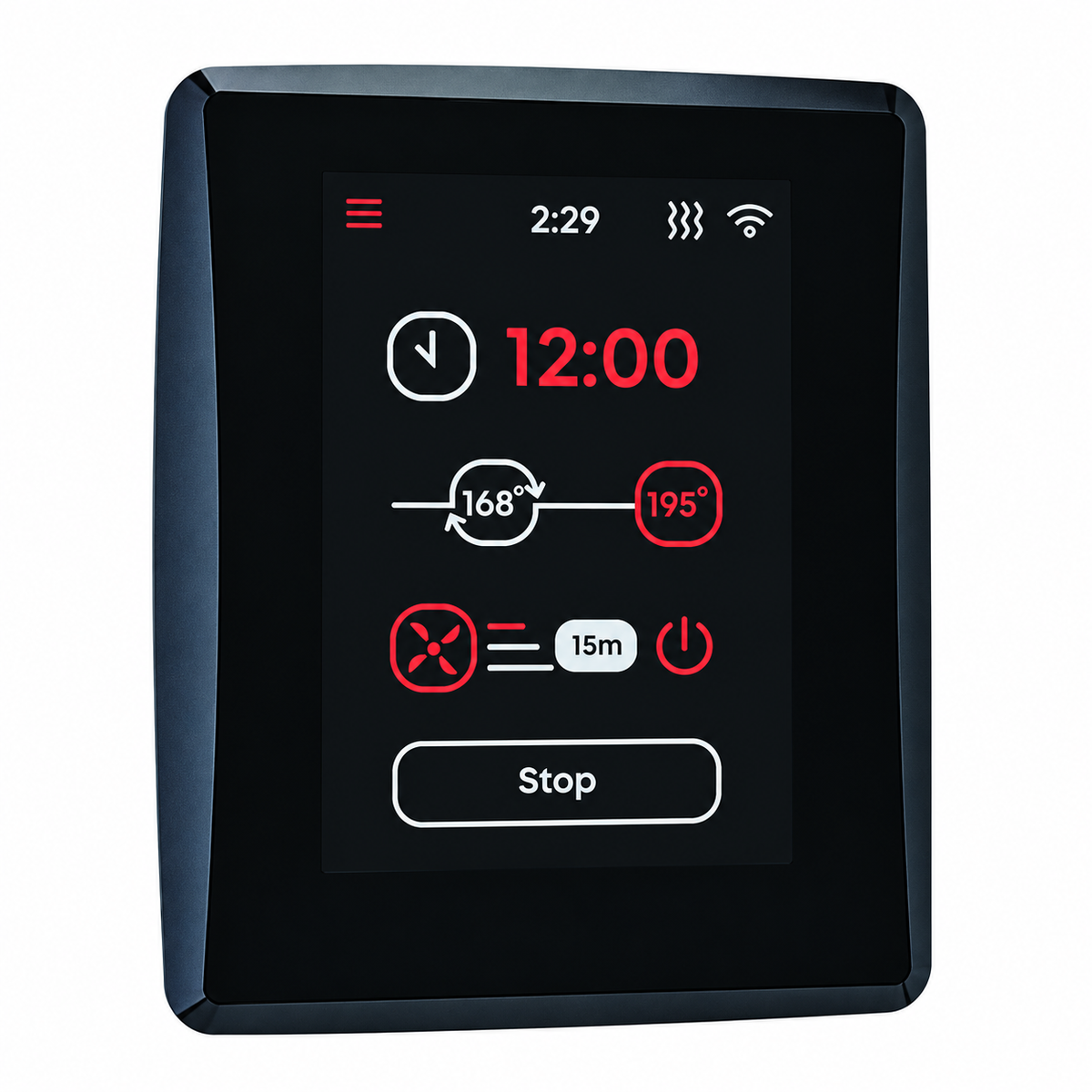

Saunum AirIQ Wi-Fi Display Panel

Width: 3.3 in (83.82 mm)

Depth: 0.8 in (20.32 mm)

Height: 4.1 in (104.14 mm)

Overall Dimensions: 3.3 W × 0.8 D × 4.1 H in (83.82 × 20.32 × 104.14 mm)

IP Rating: IP20

Saunum AirIQ Power Unit

Width: 6.5 in (165.5 mm)

Depth: 2.36 in (59.94 mm)

Height: 10.11 in (256.79 mm)

Overall Dimensions: 6.5 W × 2.36 D × 10.11 H in (165.5 × 59.94 × 256.79 mm)

IP Rating: IP64

Control & Sensor Cables

Display Panel Cable: 15 ft (475.2 cm) | 4-Conductor | 20 AWG | 150°C | Included with Compatible Heater

Door Sensor Cable: 9.83 ft (299.62 cm) | 2-Conductor | 20 AWG | 150°C | Included with Compatible Heater

Room Temperature Sensor Cable: 9.5 ft (289.56 cm) | Integrated | 150°C | Included with Compatible Heater

Door Sensor Probe

Length: 1 in (25 mm)

Diameter: 0.24 in (6 mm)

Overall Dimensions: 1 L × 0.24 Dia. in (25 × 6 mm)
