6.9 kW Heating Capacity: Designed for sauna rooms from 177 to 318 cu. ft.

Complete Air 7 Package: Combines the heater, climate equalizer, AirIQ Wi-Fi control, and 132 lb of sauna stones.

Integrated Climate Equalizer: Actively circulates air between upper and lower areas of the sauna to help reduce temperature stratification.

Patented Air-Mixing Technology: Combines hotter upper-level air with cooler lower-level air before redistributing it throughout the sauna.

Three-Speed Climate Control: AirIQ provides three-speed adjustment of the integrated climate equalizer.

AirIQ Wi-Fi Control: Provides digital heater operation, climate-system adjustment, scheduling, and connected control.

Mobile App Operation: Built-in Wi-Fi supports compatible Saunum mobile-app operation and notifications.

Weekly Scheduling: Allows sauna sessions to be scheduled for selected days and times.

Three Programmable Sauna Settings: Supports configurable temperature, operating time, and climate-device speed.

104°F–194°F Temperature Range: AirIQ provides an adjustable setpoint range from 104°F to 194°F (40°C to 90°C).

110 lb Stone Capacity: Air 7 is designed for up to 110 lb (50 kg) of 2–4 in sauna stones.

132 lb of Stones Included: Package provides 132 lb of round sauna stones, exceeding the heater's stated capacity.

Nordic Black Steel Construction: Solid-steel heater body with a premium black finish.

Incoloy Heating Elements: Stainless-steel Incoloy heating elements are protected by three slotted stainless-steel air tunnels.

Himalayan Salt System: Seven Himalayan salt spheres are included for placement within the airflow system.

Aromatherapy Compatible: Removable slotted tray supports compatible Saunum aromatherapy products.

Post-Sauna Air Circulation: The integrated fan system can be used as part of the sauna drying process after a session.

UL Listed: Manufacturer specifications identify both the Air 7 heater system and AirIQ control as UL listed.

Package Model: AIR 7 CSB PKG

Product Type: Electric Sauna Heater Package with Climate Equalizer

Heater Model: AIR 7

Control Model: AIRIQ WI-FI

Rated Power: 6,900 W (6.9 kW)

Nominal Product Class: 7 kW

Sauna Room Range: 177–318 cu. ft. (5–9 m³)

Operating Voltage: 240 VAC

Phase: Single-Phase

Amperage: 28.8A

Heater Body: Solid Steel

Finish: Nordic Black

Heating Elements: Incoloy Stainless Steel

Heating Element Protection: Three Slotted Stainless-Steel Air Tunnels

Climate Equalizer: Integrated, 3-Speed

Heater Stone Capacity: 110 lb (50 kg)

Package Stone Quantity: 132 lb

Included Stone Type: Round Sauna Stones

Stone Size: 2–4 in (5–10 cm)

Control: AirIQ Wi-Fi Included

Control Temperature Range: 104°F–194°F (40°C–90°C)

Wi-Fi: Included

Smart Home Integration: Modbus

Scheduling: Weekly

Safety Listing: UL

Minimum Ceiling Height: 73 in (1850 mm)

Heater Weight: 147 lb (67 kg)

Included

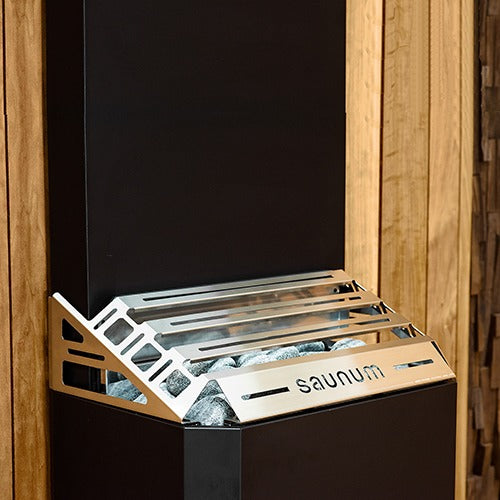

Air 7 Sauna Heater

• Nordic Black Metal Stone Basket
• Heat Equalizing Module
• Telescopic Hot Air Intake
• Heating Element Air Tunnels (3)
• Himalayan Salt Spheres (7)
• Hot Air Intake Cap
• Stainless Steel Protective Grille
• Heating Element Electrical Cable, 5 ft (152.4 cm)
• Heat Equalizer Electrical Cable, 5 ft (152.4 cm)
• Room Temperature Sensor & Cable, 9.5 ft (289.56 cm)
• Door Sensor & Cable Assembly, 9.83 ft (299.62 cm)
• IQAir Display Panel Cable, 16 ft (487.68 cm)
• Quick Install Guide
• Installation and Operation Manual
• Limited Warranty

AirIQ Wi-Fi Control

• Soft-Touch Display Panel
• Wi-Fi App-Based Operation and Updates
• Wall Mounting Plate and Fasteners
• Power Unit
• Installation and Operation Manual
• 2-Year Limited Warranty for Consumer Use
• 1-Year Limited Warranty for Commercial Use

Sauna Stones

• 132 lb of Round Sauna Stones
• 2–4 in (5–10 cm)

Important: The package includes 132 lb of stones, while the Air 7 heater is specified with a 110 lb (50 kg) stone capacity. Final loading must follow the heater's rated capacity and current Saunum installation instructions.

Saunum Air 7 Sauna Heater with Climate Equalizer

Width: 18.3 in (465 mm)

Depth: 12.4 in (315 mm)

Height: 75.4–95 in (1915–2420 mm)

Overall Dimensions: 18.3 W × 12.4 D × 75.4–95 H in (465 × 315 × 1915–2420 mm)

Heater Weight: 147 lb (67 kg)

Heat Equalizing System

Ceiling Hot Air Intake: 17.72 × 4 in (450.09 × 101.6 mm)

Cool Air Intake: 2 × 2.75 in (50.8 × 69.85 mm)

Cool Air Intake Position: Side-Mounted, 12 in (304.8 mm) Off Floor

Blended Air Output: 4.31 × 14.13 in (109.47 × 358.90 mm)

Himalayan Salt & Aroma Tray

Width: 16.5 in (419.1 mm)

Depth: 4.5 in (111.76 mm)

Tray Type: Removable, Slotted

Saunum AirIQ Wi-Fi Display Panel

Width: 3.3 in (83.82 mm)

Depth: 0.8 in (20.32 mm)

Height: 4.1 in (104.14 mm)

Overall Dimensions: 3.3 W × 0.8 D × 4.1 H in (83.82 × 20.32 × 104.14 mm)

IP Rating: IP20

Control & Sensor Cables

Heating Element Electrical Cable: 5 ft (152.4 cm) | 7-Conductor | 14 AWG | 90°C

Heat Equalizer Electrical Cable: 5 ft (152.4 cm) | 5-Conductor | 18 AWG | 90°C

Room Temperature Sensor Cable: 9.5 ft (289.56 cm) | Integrated | 150°C

Door Sensor Cable: 9.83 ft (299.62 cm) | 2-Conductor | 20 AWG | 150°C

AirIQ Display Panel Cable: 15 ft (475.2 cm) | 4-Conductor | 20 AWG | 150°C

Door Sensor Probe

Length: 1 in (25 mm)

Diameter: 0.24 in (6 mm)

Overall Dimensions: 1 L × 0.24 Dia. in (25 × 6 mm)

Shipment: This sauna heater system ships via scheduled freight delivery. The shipment arrives secured on a wooden pallet and protected with three-ply cardboard packaging.

Delivery: A delivery appointment is required. The freight carrier provides delivery service only, with limited assistance available at the delivery location.

Delivery Requirements: Prior to shipment, we may contact you to confirm delivery details and identify any access restrictions or special handling requirements that may affect delivery.

Shipping Rate: Shipping costs are determined based on location.

Accessory Freight: Eligible sauna accessories may be consolidated with the heater shipment to help minimize separate freight charges.

Saunum-Air-Sauna-Heater-12-2025-IOM.pdf
