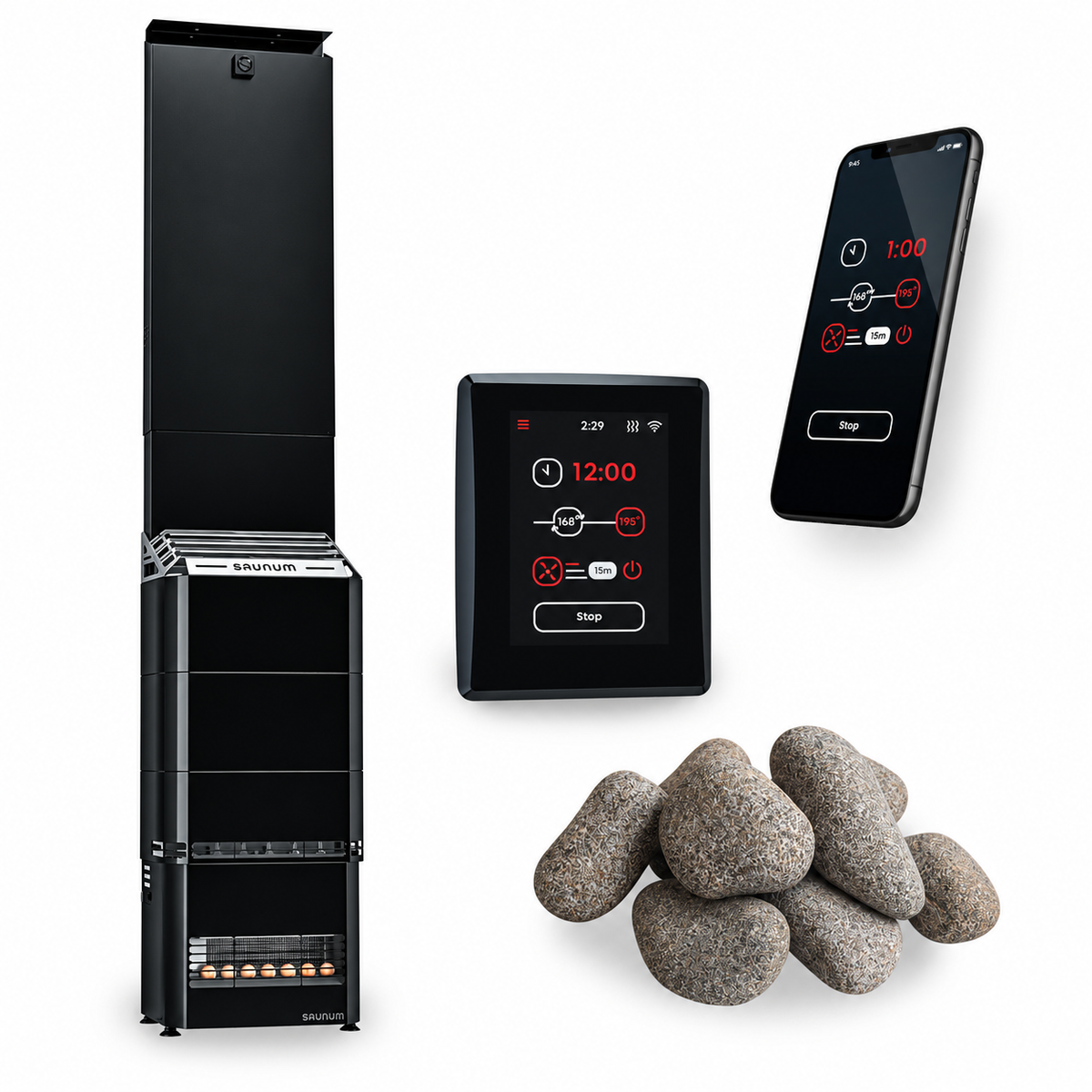

Complete Air 5 Package: Combines the heater, integrated climate equalizer, AirIQ Wi-Fi control, and 132 lb of sauna stones.

4.95 kW Heating Capacity: Designed for sauna rooms from 106 to 212 cu. ft.

Integrated Climate Equalizer: Actively circulates air between upper and lower areas of the sauna to help reduce temperature stratification.

Patented Air-Mixing Technology: Combines hotter upper-level air with cooler lower-level air before redistributing it through the sauna.

Three-Speed Air Control: Allows adjustment of the integrated climate equalizer to suit different sauna conditions.

AirIQ Wi-Fi Control: Provides digital heater and climate-system operation with built-in Wi-Fi connectivity.

Mobile App Operation: Supports compatible Saunum mobile-app control and status notifications.

Weekly Scheduling: AirIQ supports scheduling sauna sessions for selected days, times, and settings.

Three Programmable Sauna Settings: Allows temperature, operating time, and climate-device speed to be configured for different sauna experiences.

104°F–194°F Temperature Range: AirIQ provides an adjustable temperature range of 104°F to 194°F (40°C to 90°C).

110 lb Heater Stone Capacity: Air 5 is designed to accommodate 110 lb (50 kg) of 2–4 in sauna stones.

132 lb of Stones Included: Package includes 132 lb of rounded olivine diabase stones, providing more stone material than the heater's specified capacity.

Himalayan Salt System: Seven Himalayan salt spheres are included for placement within the integrated airflow system.

Aromatherapy Compatible: Removable slotted tray supports compatible Saunum aromatherapy products.

Nordic Black Steel Construction: Distinctive vertical heater and matching control-panel finish.

UL Listed: Manufacturer specifications identify both the Air 5 heater system and AirIQ control as UL listed.

Package Model: AIR 5 CSB PKG

Product Type: Electric Sauna Heater Package with Climate Equalizer

Heater Model: AIR 5

Control Model: AIRIQ WI-FI

Rated Power: 4,950 W (4.95 kW)

Sauna Room Range: 106–212 cu. ft. (3–6 m³)

Operating Voltage: 240 VAC

Phase: Single-Phase

Amperage: 20.6A

Heater Body: Solid Steel

Finish: Nordic Black

Heating Elements: Incoloy Stainless Steel

Heating Element Protection: Three Slotted Stainless-Steel Air Tunnels

Climate Equalizer: Integrated, 3-Speed

Heater Stone Capacity: 110 lb (50 kg)

Package Stone Quantity: 132 lb

Included Stone Type: Round Olivine Diabase

Stone Size: 2–4 in (5–10 cm)

Control: AirIQ Wi-Fi Included

Control Temperature Range: 104°F–194°F (40°C–90°C)

Wi-Fi: Included

Scheduling: Weekly

Safety Listing: UL

Minimum Ceiling Height: 73 in (1850 mm)

Heater Weight: 147 lb (67 kg)

Included

Air 5 Sauna Heater

• Nordic Black Metal Stone Basket
• Heat Equalizing Module
• Telescopic Hot Air Intake
• Heating Element Air Tunnels (3)
• Himalayan Salt Spheres (7)
• Hot Air Intake Cap
• Stainless Steel Protective Grille
• Heating Element Electrical Cable, 5 ft (152.4 cm)
• Heat Equalizer Electrical Cable, 5 ft (152.4 cm)
• Room Temperature Sensor & Cable, 9.5 ft (289.56 cm)
• Door Sensor & Cable Assembly, 9.83 ft (299.62 cm)
• IQAir Display Panel Cable, 16 ft (487.68 cm)
• Quick Install Guide
• Installation and Operation Manual
• Limited Warranty

AirIQ Wi-Fi Control

• Soft-Touch Wi-Fi Display Panel
• Wall Mounting Plate and Fasteners
• Power Unit
• Installation and Operation Manual
• 2-Year Limited Warranty for Consumer Use
• 1-Year Limited Warranty for Commercial Use

Sauna Stones

• 132 lb of Round Olivine Diabase Sauna Stones
• 2–4 in (5–10 cm)

Important: The package contains 132 lb of stones while the Air 5 heater is specified with a 110 lb (50 kg) stone capacity. Do not assume all 132 lb should be loaded into the heater. Final stone loading must follow Saunum's current installation instructions and rated heater capacity.

Saunum Air 5 Sauna Heater with Climate Equalizer

Width: 18.3 in (465 mm)

Depth: 12.4 in (315 mm)

Height: 75.4–95 in (1915–2420 mm)

Overall Dimensions: 18.3 W × 12.4 D × 75.4–95 H in (465 × 315 × 1915–2420 mm)

Heater Weight: 147 lb (67 kg)

Heat Equalizing System

Ceiling Hot Air Intake: 17.72 × 4 in (450.09 × 101.6 mm)

Cool Air Intake: 2 × 2.75 in (50.8 × 69.85 mm)

Cool Air Intake Position: Side-Mounted, 12 in (304.8 mm) Off Floor

Blended Air Output: 4.31 × 14.13 in (109.47 × 358.90 mm)

Himalayan Salt & Aroma Tray

Width: 16.5 in (419.1 mm)

Depth: 4.5 in (111.76 mm)

Tray Type: Removable, Slotted

Saunum AirIQ Wi-Fi Display Panel

Width: 3.3 in (83.82 mm)

Depth: 0.8 in (20.32 mm)

Height: 4.1 in (104.14 mm)

Overall Dimensions: 3.3 W × 0.8 D × 4.1 H in (83.82 × 20.32 × 104.14 mm)

IP Rating: IP20

Control & Sensor Cables

Heating Element Electrical Cable: 5 ft (152.4 cm) | 7-Conductor | 14 AWG | 90°C

Heat Equalizer Electrical Cable: 5 ft (152.4 cm) | 5-Conductor | 18 AWG | 90°C

Room Temperature Sensor Cable: 9.5 ft (289.56 cm) | Integrated | 150°C

Door Sensor Cable: 9.83 ft (299.62 cm) | 2-Conductor | 20 AWG | 150°C

AirIQ Display Panel Cable: 15 ft (475.2 cm) | 4-Conductor | 20 AWG | 150°C

Door Sensor Probe

Length: 1 in (25 mm)

Diameter: 0.24 in (6 mm)

Overall Dimensions: 1 L × 0.24 Dia. in (25 × 6 mm)

Shipment: This sauna heater system ships via scheduled freight delivery. The shipment arrives secured on a wooden pallet and protected with three-ply cardboard packaging.

Delivery: A delivery appointment is required. The freight carrier provides delivery service only, with limited assistance available at the delivery location.

Delivery Requirements: Prior to shipment, we may contact you to confirm delivery details and identify any access restrictions or special handling requirements that may affect delivery.

Shipping Rate: Shipping costs are determined based on location.

Accessory Freight: Eligible sauna accessories may be consolidated with the heater shipment to help minimize separate freight charges.

Saunum-Air-Sauna-Heater-12-2025-IOM.pdf
