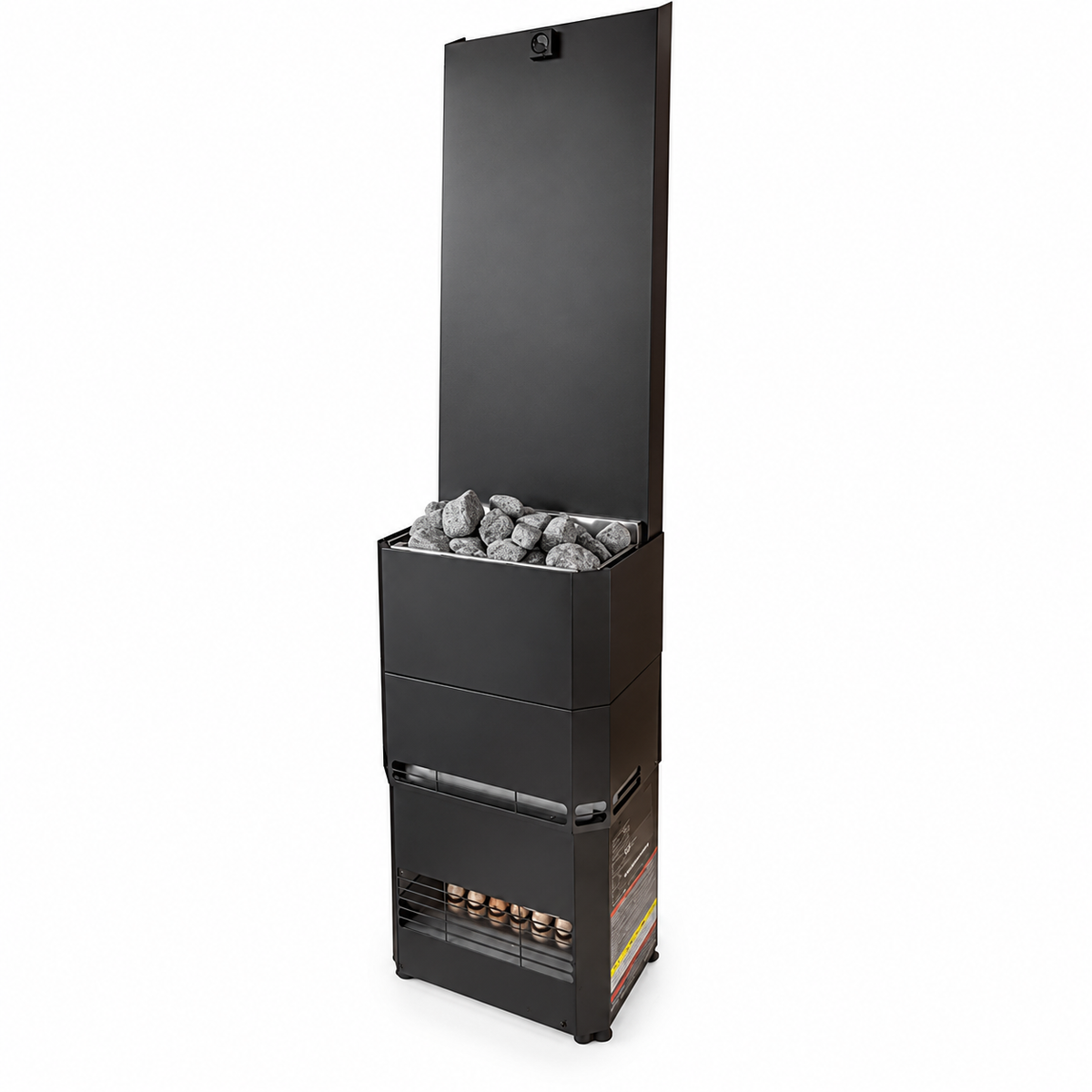

Saunum Air 5 Sauna Heater

1 6

Saunum Air 5 Sauna Heater

Saunum Air 5 Sauna Heater

The Saunum Air 5 combines a 4.95 kW electric sauna heater with Saunum's integrated climate-equalizing system, creating a single floor-standing system designed for sauna rooms from 106 to 212 cubic feet. Rather than functioning as a conventional heater alone, the Air 5 actively circulates air between the upper and lower areas of the sauna to help reduce temperature stratification and create more consistent conditions throughout the room. Its distinctive Nordic Black steel body incorporates a 110 lb (50 kg) stone capacity, three protected Incoloy heating elements, a three-speed heat and steam equalizer, telescopic ceiling-level hot-air intake, adjustable lower cool-air intake, and blended-air outlet. The system also incorporates Saunum's removable Himalayan salt and aroma tray for use with compatible salt spheres and optional aromatherapy products. Designed for 240V single-phase power, the Air 5 is rated at 4,950 watts and 20.6 amps. A compatible Saunum control system is required for operation and is sold separately. The heater is UL listed according to the supplied manufacturer specifications. A compatible Saunum control and 110 lb (50 kg) of 2–4 in sauna stones are required and sold separately.

Steam

$2,895

$2,895 ~~$3,400~~

Save 15% Sold out

Shipping calculated at checkout.

MESSAGE US

In Stock - Estimated to ship in 6–8 weeks

Key Features

4.95 kW Heating Capacity: Designed for sauna rooms from 106 to 212 cu. ft.

Integrated Climate Equalizer: Combines the sauna heater with Saunum's air-circulation system to redistribute air between upper and lower areas of the sauna.

Patented Air-Mixing Technology: Draws hotter air from the upper sauna and combines it with cooler air from lower in the room before redistributing the blended air.

Three-Speed Equalizer: Heat and steam equalizer provides three operating speeds with manufacturer-described whisper-quiet operation.

110 lb Stone Capacity: Large stone basket accommodates 110 lb (50 kg) of 2–4 in sauna stones.

Nordic Black Steel Construction: Distinctive vertical heater design finished in black steel.

Incoloy Heating Elements: Stainless-steel Incoloy elements are protected by three slotted stainless-steel air tunnels.

Telescopic Hot-Air Intake: Adjustable vertical intake accommodates the heater's installation height range.

Adjustable Lower Air Intake: Side-mounted cool-air intake is positioned 12 in (304.8 mm) above the floor.

Himalayan Salt System: Includes seven Himalayan salt spheres positioned within the airflow system.

Aromatherapy Compatible: Removable slotted tray can accommodate compatible Saunum aromatherapy products.

Post-Sauna Air Circulation: The fan system can continue circulating air as part of the sauna drying process after use.

UL Listed: Manufacturer specifications identify the AIR 5 system as UL listed.

External Control Required: A compatible Saunum control system is required and sold separately.

Product Details

Brand: Saunum

Model: AIR 5

Product Type: Electric Sauna Heater with Climate Equalizer

Series: Air Series

Rated Power: 4,950 W (4.95 kW)

Sauna Room Range: 106–212 cu. ft. (3–6 m³)

Operating Voltage: 240V

Phase: Single-Phase

Amperage: 20.6A

Heater Body: Solid Steel

Finish: Nordic Black

Heating Elements: Incoloy Stainless Steel

Heating Element Protection: Three Slotted Stainless-Steel Air Tunnels

Climate Equalizer: Integrated

Equalizer Speeds: 3

Stone Capacity: 110 lb (50 kg)

Stone Size: 2–4 in (5–10 cm)

Sauna Stones: Required, Sold Separately

Control: Required, Sold Separately

Safety Listing: UL

Minimum Ceiling Height: 73 in (1850 mm)

Heater Weight: 147 lb (67 kg)

Included

Nordic Black Metal Stone Basket
Heat Equalizing Module
Telescopic Hot Air Intake
Heating Element Air Tunnels (3)
Himalayan Salt Spheres (7)
Hot Air Intake Cap
Stainless Steel Protective Grille
Heating Element Electrical Cable, 5 ft (152.4 cm)
Heat Equalizer Electrical Cable, 5 ft (152.4 cm)
Room Temperature Sensor & Cable, 9.5 ft (289.56 cm)
Door Sensor & Cable Assembly, 9.83 ft (299.62 cm)
IQAir Display Panel Cable, 16 ft (487.68 cm)
Quick Install Guide
Installation and Operation Manual
Limited Warranty

A compatible Saunum control system and 110 lb (50 kg) of 2–4 in sauna stones are required for operation and sold separately.

Dimensions

Saunum Air 5 Sauna Heater with Climate Equalizer

Width: 18.3 in (465 mm)

Depth: 12.4 in (315 mm)

Height: 75.4–95 in (1915–2420 mm)

Overall Dimensions: 18.3 W × 12.4 D × 75.4–95 H in (465 × 315 × 1915–2420 mm)

Heater Weight: 147 lb (67 kg)

Heat Equalizing System

Ceiling Hot Air Intake: 17.72 × 4 in (450.09 × 101.6 mm)

Cool Air Intake: 2 × 2.75 in (50.8 × 69.85 mm)

Cool Air Intake Position: Side-Mounted, 12 in (304.8 mm) Off Floor

Blended Air Output: 4.31 × 14.13 in (109.47 × 358.90 mm)

Himalayan Salt & Aroma Tray

Width: 16.5 in (419.1 mm)

Depth: 4.5 in (111.76 mm)

Tray Type: Removable, Slotted

Control & Sensor Cables

Heating Element Electrical Cable: 5 ft (152.4 cm) | 7-Conductor | 14 AWG | 90°C

Heat Equalizer Electrical Cable: 5 ft (152.4 cm) | 5-Conductor | 18 AWG | 90°C

Room Temperature Sensor Cable: 9.5 ft (289.56 cm) | Integrated | 150°C

Door Sensor Cable: 9.83 ft (299.62 cm)

IQAir Display Panel Cable: 16 ft (487.68 cm)

Shipping & Delivery

Shipment: This sauna heater system ships via scheduled freight delivery. The shipment arrives secured on a wooden pallet and protected with three-ply cardboard packaging.

Delivery: A delivery appointment is required. The freight carrier provides delivery service only, with limited assistance available at the delivery location.

Delivery Requirements: Prior to shipment, we may contact you to confirm delivery details and identify any access restrictions or special handling requirements that may affect delivery.

Shipping Rate: Shipping costs are determined based on location.

Accessory Freight: Eligible sauna accessories may be consolidated with the heater shipment to help minimize separate freight charges.

Installation and Operation

Saunum-Air-Sauna-Heater-12-2025-IOM.pdf
