Wood-Finish Control Panel: Natural wood-style interface designed to complement traditional and contemporary sauna interiors.

Digital Sauna Control: Provides local control of sauna power, operating time, temperature, and delayed start.

Up to 18 kW Heater Support: Designed for compatible HUUM sauna heaters up to 18 kW when configured with the required components.

Extension Box for Higher Outputs: HUUM specifies a UKU Extension Box for heaters over 11 kW and up to 18 kW.

104–230°F Temperature Range: Detailed technical specifications list a minimum temperature of 104°F and maximum of 230°F.

48-Hour Delayed Start: Allows sauna operation to be scheduled up to 48 hours in advance.

Temperature Display: Displays both the selected temperature and measured sauna room temperature.

Optional Smart Heating: Includes an optional smart heating setting for sauna operation.

Temperature Sensor: Included for monitoring sauna room temperature.

Door Sensor: Included as part of the control system's safety functionality.

Remote Main Control Module: Separates the primary control electronics from the compact user interface.

Lighting & Ventilation Connections: Provides connections for compatible sauna lighting and ventilation equipment.

Overheat Protection: Integrated protection against excessive sauna temperatures.

Child Safety Lock: Helps prevent unintended control operation.

Indoor or Protected Outdoor Installation: May be installed inside or outside the sauna room; outdoor installations require an enclosed weatherproof box.

Limited Warranty: Includes a 3-year limited residential warranty and 1-year limited commercial warranty.

Model: UKU LOCAL

Product Type: Digital Sauna Control

Panel Finish: Wood

Control Type: Local Digital Control

Wi-Fi Connectivity: No Wi-Fi Function Specified

Maximum Supported Heater Output: Up to 18 kW with Appropriate Configuration

Extension Box Requirement: Required for Compatible HUUM Heaters Over 11 kW and Up to 18 kW

Minimum Temperature: 104°F

Maximum Temperature: 230°F

Delayed Start: Up to 48 Hours

Temperature Display: Set Temperature and Current Room Temperature

Smart Heating: Optional

Temperature Sensor: Included

Door Sensor: Included

Lighting Control Connection: Yes

Ventilation Control Connection: Yes

Overheat Protection: Yes

Child Safety Lock: Yes

Installation Location: Inside or Outside Sauna Room

Outdoor Installation: Requires an Enclosed Weatherproof Box

Residential Warranty: Limited 3 Years

Commercial Warranty: Limited 1 Year

Included

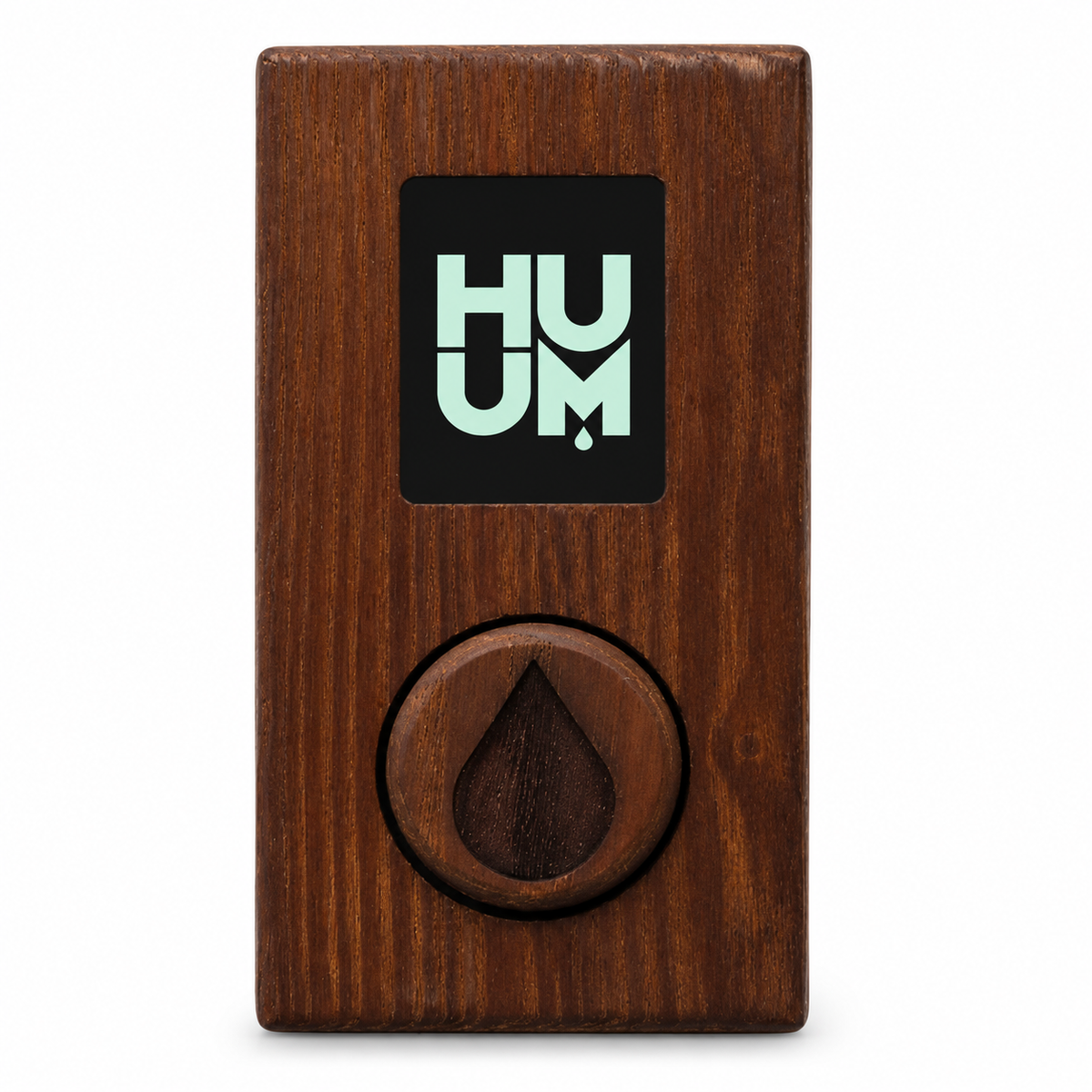

• HUUM UKU Local Wood Control Display Panel
• Main Control Module
• Temperature Sensor
• Door Sensor
• Control Display Panel Cable
• Temperature Sensor Cable
• Door Sensor Cable
• Installation and Operation Manual
• 3-Year Limited Residential Warranty
• 1-Year Limited Commercial Warranty

Sauna heater is sold separately. A HUUM UKU Extension Box is also sold separately and is required for compatible heaters over 11 kW and up to 18 kW.

Width: 2.2 in

Depth: 0.9 in

Height: 4.1 in

Overall Dimensions: 2.2 W × 0.9 D × 4.1 H in

Shipping rates are calculated based on the delivery location. Final shipping costs will be confirmed based on the destination.

HUUM-UKU-Control-IOM.pdf
