Built-In Wi-Fi: Connects directly to the HUUM mobile app for remote sauna operation and monitoring.

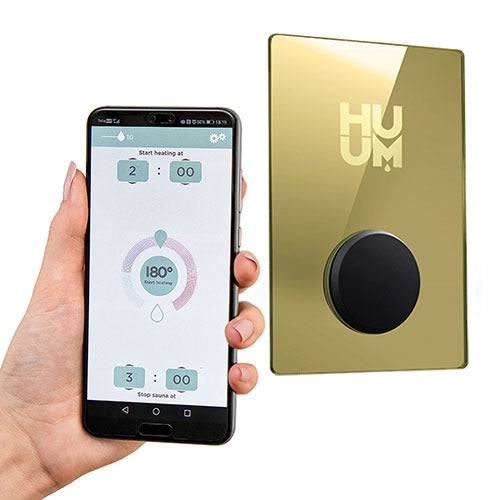

HUUM Mobile App Control: Adjust temperature, schedule operation, start the sauna remotely, and monitor current sauna temperature from a compatible mobile device.

Premium Gold Glass Panel: Features a gold-colored glass surface for a refined, contemporary appearance.

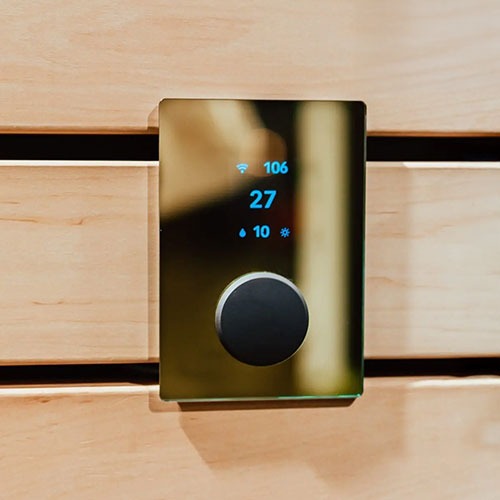

Surface or Flush Mounting: The display panel can be surface-mounted or recessed into the wall.

Up to 11 kW Direct Control: Designed to control compatible sauna heaters up to 11 kW without an extension box.

Up to 18 kW with Extension Box: Compatible heater loads above 11 kW and up to 18 kW require a HUUM UKU Extension Box.

Delayed Start: Sauna operation can be scheduled up to 48 hours in advance.

Temperature Control: Supports adjustable sauna temperature settings up to 230°F.

Temperature Monitoring: Displays both the selected temperature and current sauna room temperature.

Temperature Sensor Included: Monitors sauna room temperature for control-system operation.

Door Sensor Included: Monitors the sauna door as part of the control and safety system.

Lighting and Ventilation Control: Supports connection to compatible sauna lighting and ventilation equipment.

Steamer Connectivity: Can connect to a compatible steamer where supported; steamer is not included.

Overheat Protection: Integrated protection supports safe system operation.

Child Safety Lock: Helps prevent unintended control-panel operation.

Multiple Users: Supports an unlimited number of users through the HUUM system.

Multilingual Interface: Supports multiple language options.

Model: UKU Gold

Product Type: Wi-Fi Sauna Control System

Panel Finish: Gold

Panel Material/Surface: Gold-Colored Glass

Wi-Fi: Built-In

Mobile App: HUUM Mobile App

Direct Heater Capacity: Up to 11 kW

Extended Heater Capacity: Up to 18 kW with HUUM UKU Extension Box

Minimum Temperature Setting: 104°F, According to Detailed Specification Table

Maximum Temperature Setting: 230°F

Delayed Start: Up to 48 Hours

Installation: Inside or Outside Sauna Room

Outdoor Installation: Requires an Enclosed Weatherproof Box

Panel Mounting: Surface or Recessed

Recessed Depth: Up to 0.54 in

Temperature Display: Set Temperature and Current Room Temperature

Temperature Sensor: Included

Door Sensor: Included

Main Control Module: Included

Lighting Control: Supported

Ventilation Control: Supported

Steamer Connection: Supported Where Compatible; Steamer Not Included

Overheat Protection: Yes

Child Safety Lock: Yes

Users: Unlimited

Shipping Weight: 20 lb

Residential Warranty: 3-Year Limited Warranty

Commercial Warranty: 1-Year Limited Warranty

Included

• Gold Glass Control Display Panel
• Main Control Module
• Temperature Sensor
• Door Sensor
• 9.84 ft Control Display Panel Cable, 22 AWG
• 16.4 ft Temperature Sensor Cable, 24 AWG
• 16.4 ft Door Sensor Cable, 24 AWG
• Installation and Operation Manual
• 3-Year Limited Residential Warranty
• 1-Year Limited Commercial Warranty

Sauna heater and UKU Extension Box are not included. The Extension Box is required only when applicable to the selected heater configuration.

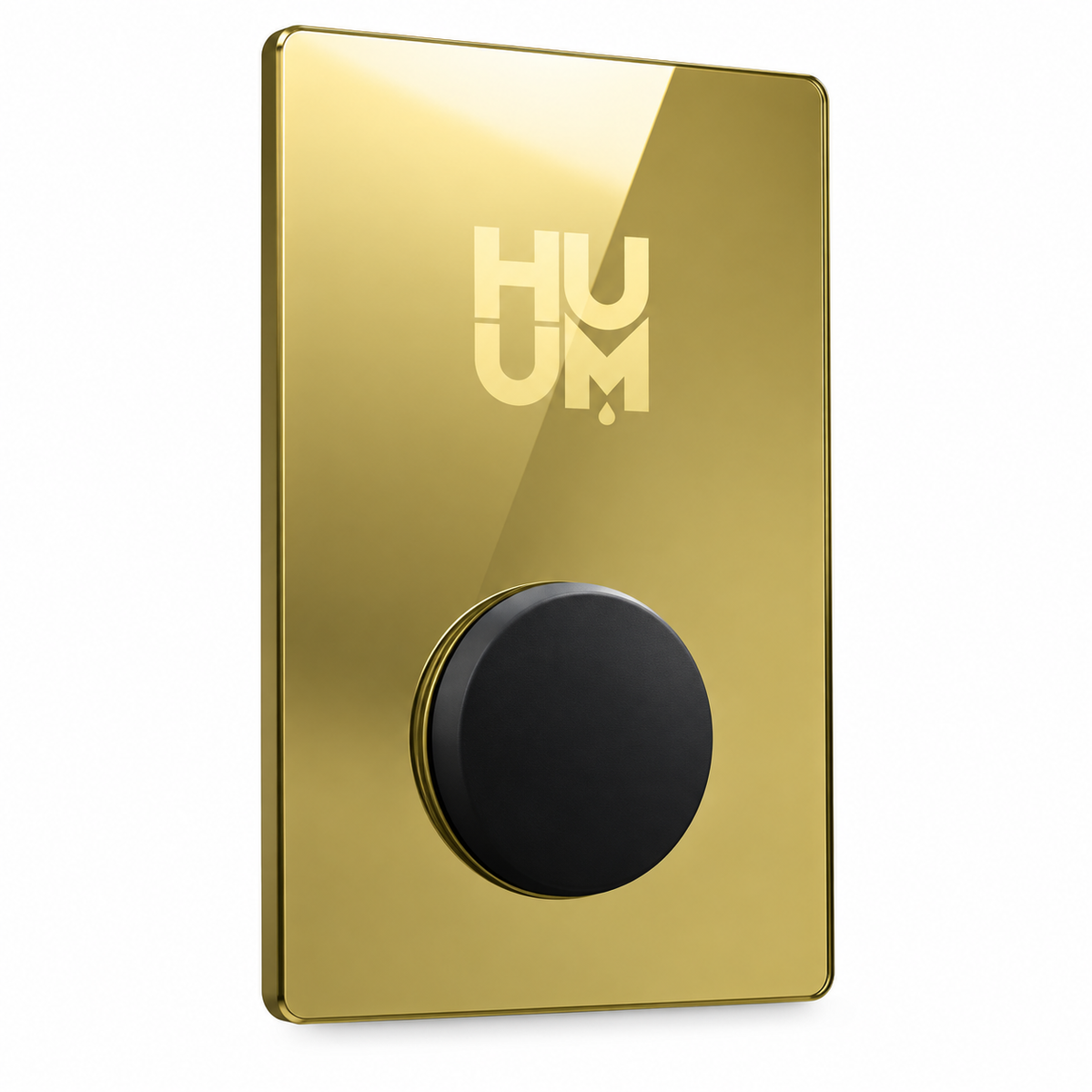

HUUM UKU Gold Control Panel

Width: 3.5 in

Height: 5.11 in

Depth: 0.72 in

Recessed Depth: Up to 0.54 in

Overall Dimensions: 3.5 × 0.72 × 5.11 in (W × D × H)

Main Control Module

Width: 5.59 in

Depth: 2.28 in

Height: 3.54 in

Overall Dimensions: 5.59 × 2.28 × 3.54 in (W × D × H)

Shipping Weight: 20 lb

Shipping rates are calculated based on the delivery location. Final shipping costs will be confirmed based on the destination.

HUUM-UKU-Control-IOM.pdf
