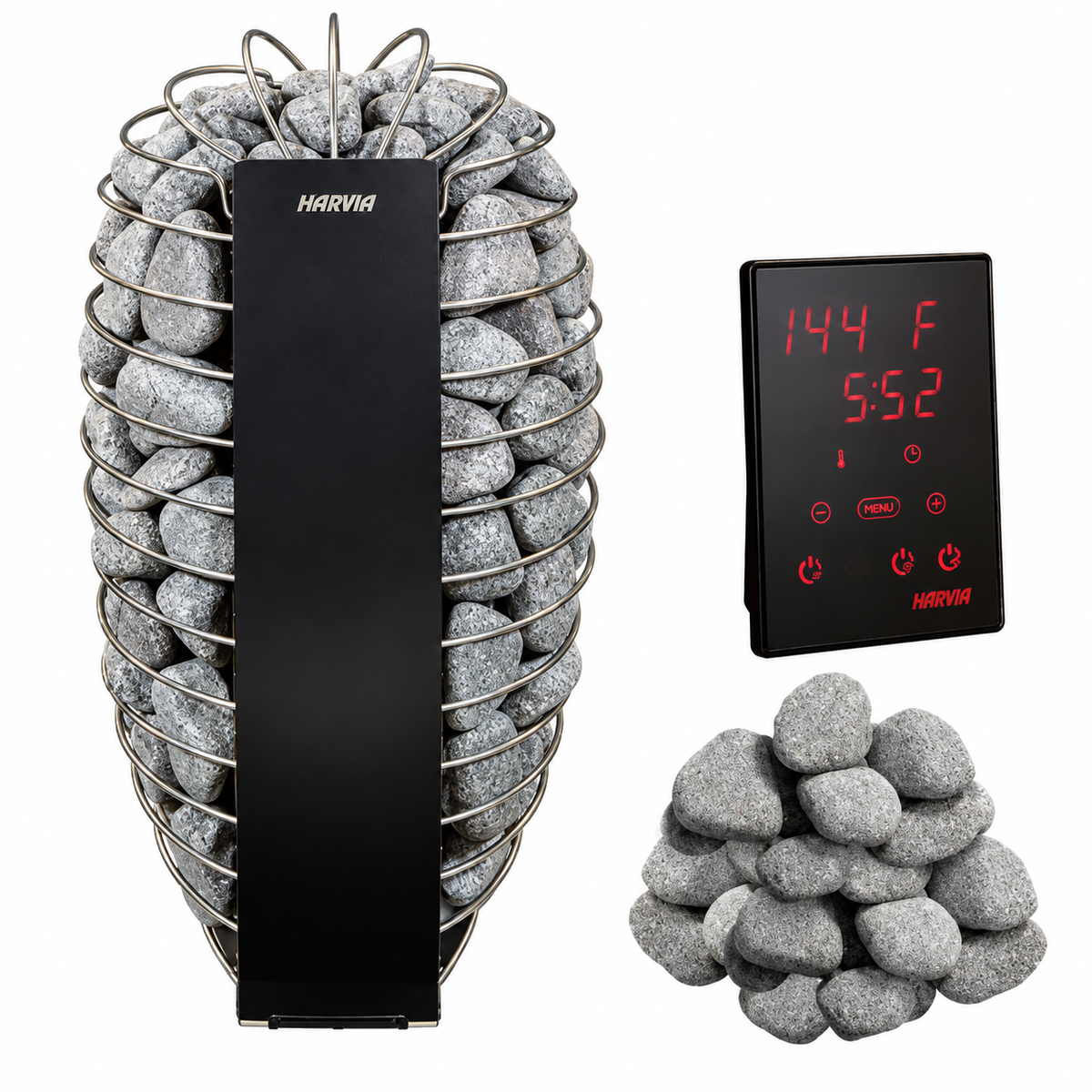

Complete Heater Package: Includes the 6.0 kW Spirit SP60E heater, Wi-Fi control system, and sauna stones.

6.0 kW Heating Power: Designed for sauna rooms from 177 to 294 cubic feet.

Wi-Fi Control Options: Choose between the Harvia Xenio Wi-Fi or Fenix Wi-Fi control system.

Remote Sauna Control: Compatible Wi-Fi connectivity enables remote heater control and monitoring.

Integrated Safety Functions: Safety sensors monitor the heater and sauna environment to support safe operation and help prevent overheating.

110 lb Stone Capacity: Large stone mass supports traditional heat and steam production.

Wall-Mounted Design: Provides a streamlined installation while preserving sauna floor space.

Xenio Wi-Fi Control: Provides digital control of temperature, time, lighting, and fan functions.

Fenix Wi-Fi Control: Premium glass-interface controller with intelligent functionality, Wi-Fi connectivity, and control of the heater, lighting, and ventilation.

ETL Listed: Heater is safety listed by Electrical Testing Laboratories.

Made in Finland: Spirit heater is designed, engineered, and manufactured in Finland.

Package Model: SPIRIT SP60E PKG

Heater Model: SP60E

Product Type: Electric Sauna Heater Package

Installation: Wall-Mounted

Heating Power: 6.0 kW / 6,000W

Recommended Room Size: 177–294 cu. ft.

Voltage: 240V

Phase: Single-Phase

Amperage: 25A

Wire Size: 10 AWG

Circuit Breaker: Refer to Installation and Operation Manual

Control: Xenio Wi-Fi or Fenix Wi-Fi

Stone Capacity: 110 lb

Included Stones: 132 lb

Stone Size: 2–4 in (5–10 cm)

Minimum Ceiling Height: 75 in

Safety Listing: ETL

Origin: Finland

Residential Warranty: 1-Year Limited Warranty

Commercial Warranty: 1-Year Limited Warranty

Control Options

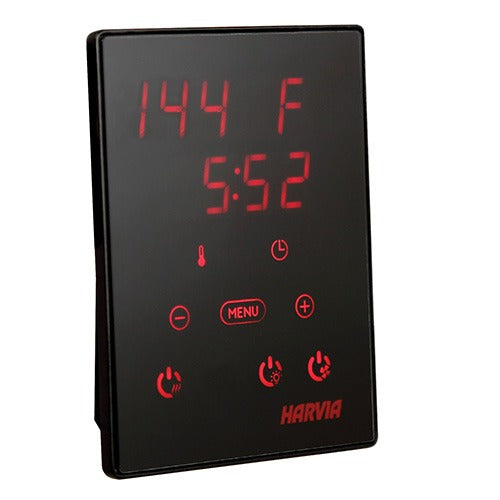

Harvia Xenio Wi-Fi Control

The Xenio Wi-Fi provides a compact digital interface for controlling the sauna heater and compatible sauna functions.

Model: CX30-U1-U3-XW

Maximum Output: 7 kW

Voltage: 240V

Phase: Single-Phase

Temperature Range: 104–194°F

Preset Time Range: 0–12 Hours

Connectivity: Wi-Fi

Controls: Heater, Temperature, Time, Lighting & Fan

Installation: Surface or Flush-Mounted

Location: Inside or Outside Sauna Room

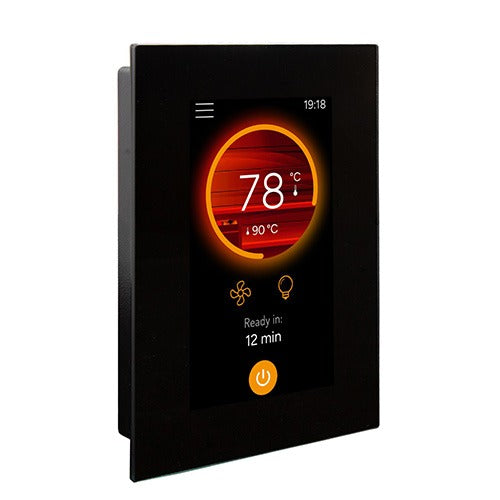

Harvia Fenix Wi-Fi Control

The Fenix Wi-Fi provides a premium glass-screen interface with intelligent control features and remote connectivity.

Model: FX45-U1-U3-XC

Maximum Output: 7 / 10.5 kW

Voltage: 240V / 208V

Phase: 1-Phase / 3-Phase

Temperature Range: 104–194°F

Preset Time Range: 0–12 Hours

Connectivity: Wi-Fi

Controls: Heater, Lighting & Ventilation

Interface: Glass-Screen Control Panel

Installation: Surface or Flush-Mounted

Location: Inside or Outside Sauna Room

Included

Spirit SP60E Sauna Heater

• 6.0 kW Spirit SP60E Sauna Heater

• Temperature Sensor

• Wall-Mounting Bracket

• Mounting Screws

• Installation and Operation Manual

• 1-Year Limited Consumer Warranty

• 1-Year Limited Commercial Warranty


Selected Wi-Fi Control

Xenio Wi-Fi Package:

• Xenio Wi-Fi Control

• Temperature Sensor

• Power Unit

• Installation and Operation Manual


OR

Fenix Wi-Fi Package:

• Fenix Control Panel

• Temperature Sensor

• Power Unit

• Data Cable

• Installation Materials

• Installation and Operation Manual

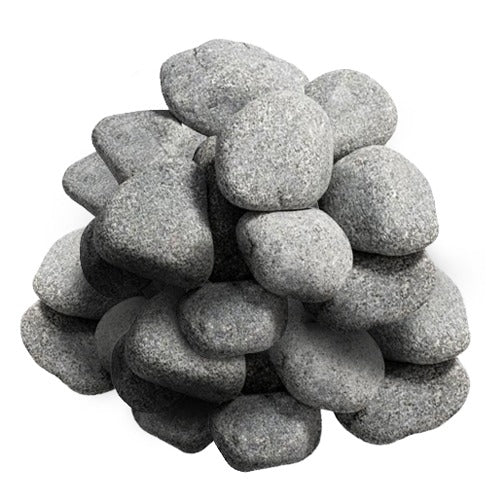

Sauna Stones

• 132 lb of Rounded Sauna Stones

• Stone Size: 2–4 in (5–10 cm)

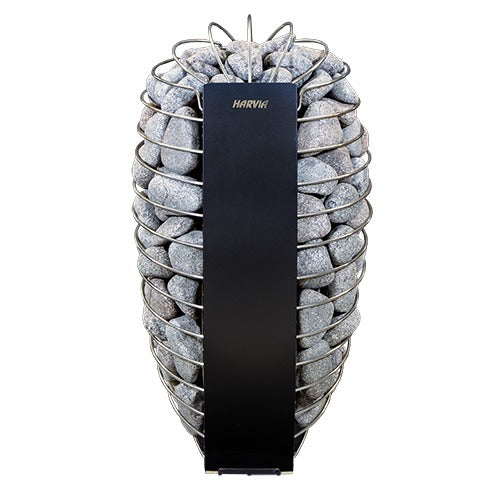

Spirit SP60E Heater

Width: 15 in (38.1 cm)

Depth: 13.1 in (33.3 cm)

Height: 29.5 in (74.9 cm)

Overall Dimensions: 15 × 13.1 × 29.5 in (W × D × H)

Heater Weight: 28.8 lb

Stone Capacity: 110 lb

Shipping Weight with Stones: 160.8 lb

Xenio / Fenix Control Panel

Width: 3.4 in (8.6 cm)

Depth: 1 in (2.5 cm)

Height: 4.4 in (11.2 cm)

Overall Dimensions: 3.4 × 1 × 4.4 in (W × D × H)

Shipping rates are calculated based on the delivery location. Final shipping costs will be confirmed based on the destination.

Harvia Spirit SP60E Pkg Installation Guide
Xenio Wi-Fi Control or Fenix Wi-Fi Control Guide
